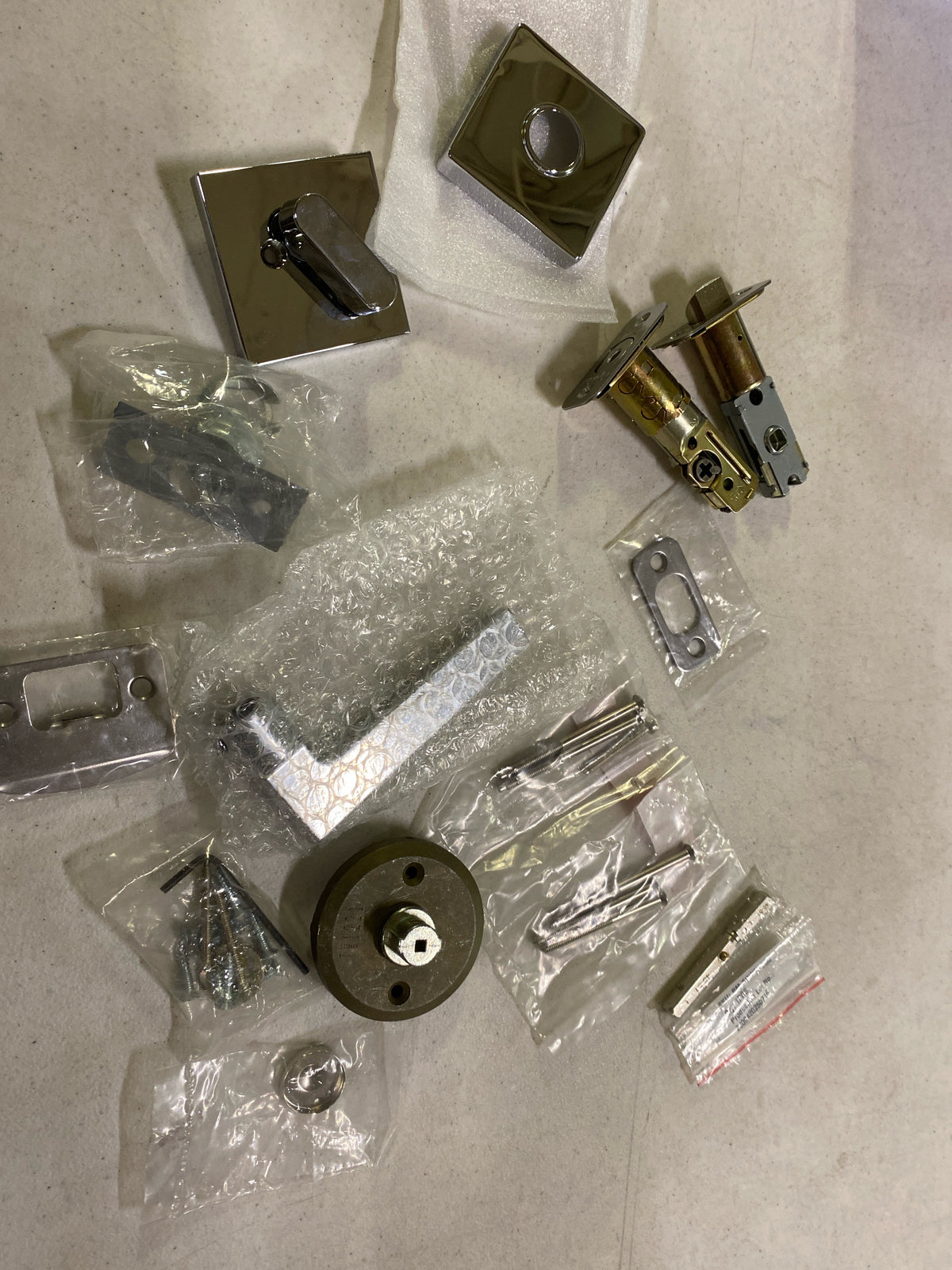

Copper Creek VL2810PS Mid Century Modern Keyed Entry Single Cylinder Handleset Interior Pack with Verona Lever - Polished Stainless

Specifications

• Product Identifier: bci2844136
• Product Finish/Color: Polished Stainless
• Manufacturer: Copper Creek
• Product Type: Handlesets
• Backset: 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4"
• Cross Bore: 2-1/8"
• Door Thickness: 1-1/2", 1-5/8", 1-3/8", 1-3/4"
• Edge Bore: 1"
• Handle Length: 4.25
• Handle Projection: 2.125
• Trim Height: 2.625
• Trim Width: 2.625
• 28 Degree Latch: No
• Cylinder Included: Yes
• Concealed Screws: Yes
• Cylinder: 5 Pin KW1
• Cylinder Type: Single Cylinder
• Function: Keyed Entry
• Handing: Right, Left, Reversible
• Handle Design: Verona
• Handle Style: Lever
• Interconnected: No
• Keyway: KW1
• Latch Faceplate: Drive-In, Square Corner, Round Corner
• Locking Mechanism: Thumbturn
• Material: Zinc, Steel, Brass
• Panic Proof: No
• Removable Core: No
• Rosette Shape: Square
• Shape: Straight, Flat
• Theme: Transitional
• SmartKey: No
• ADA: Yes
• ANSI Certification: A156.2
• Approved for Commercial Use: No
• BHMA Certification: Grade 3
• Certifications: ANSI, UL
• Collection: Mid Century Modern
• Country Of Origin: Taiwan
• Fire Rated: No
• Series: Verona
• Model Name: VL2810PS
