Description

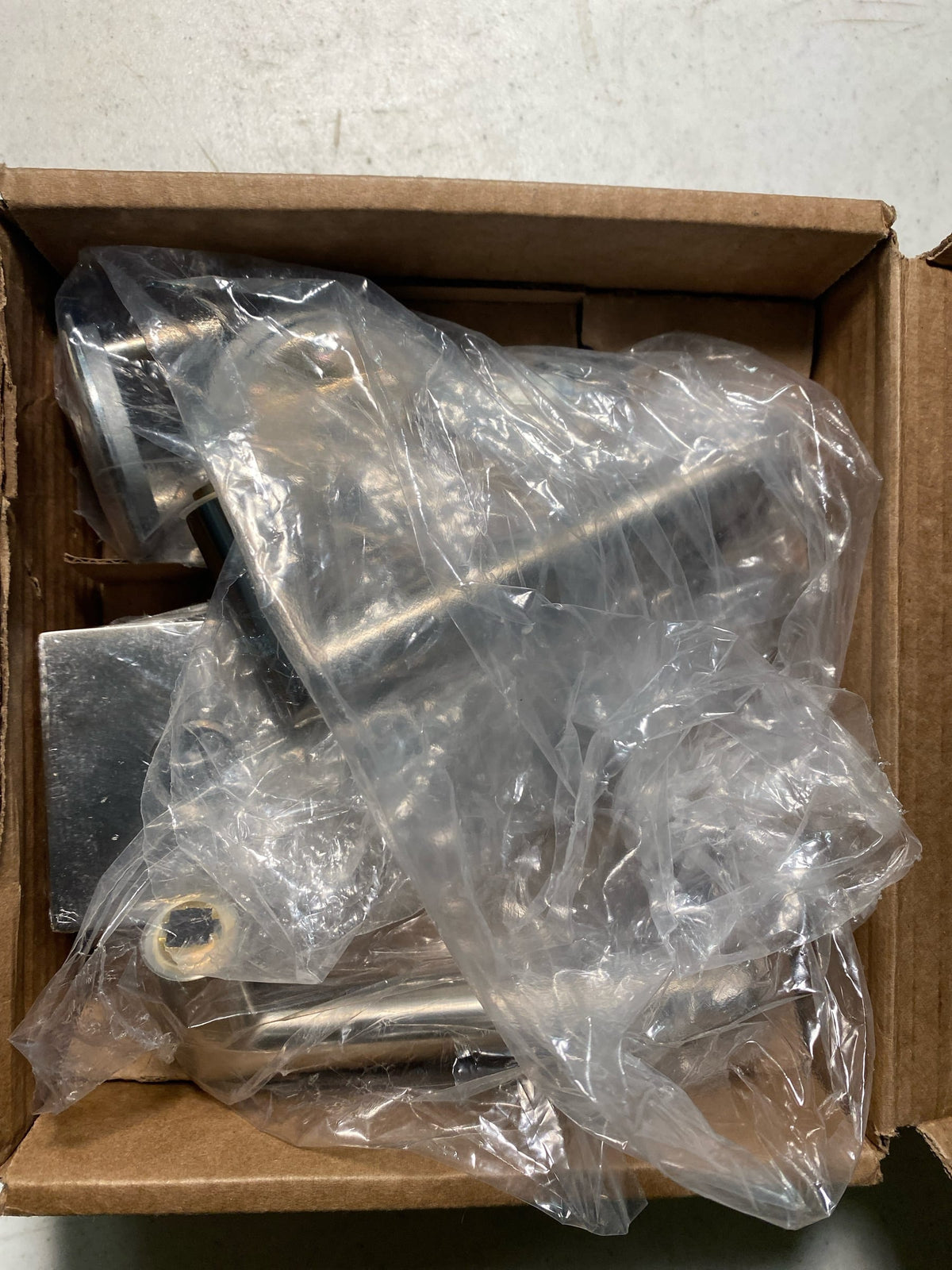

Emtek Stuttgart C5110STUUS15 passage door lever set with square rose and CF mechanism from the Brass Modern Collection, in Satin Nickel. Made of brass, it fits doors prepped with a 2-3/8 in backset, a 2-1/8 in cross bore and a 1 in edge bore.
Installation details
- A door with a 2-3/8 in backset
- A 2-1/8 in cross bore and a 1 in edge bore
Highlights
- Brass construction with concealed screws and a 28 degree latch
- Square rosette with Stuttgart round, straight lever handles
- Square corner latch
- ADA compliant
Specifications
| Brand | Emtek |
|---|---|
| Model | C5110STUUS15 |
| Finish | Satin Nickel |
| Backset | 2-3/8" |
| Cross Bore | 2-1/8 in |
| Edge Bore | 1 in |
| Handle Length | 5.25 in |
| Handle Projection | 2.375 in |
| Product Weight | 1.5 lb |
| Trim Height | 2.5 in |
| Trim Width | 2.5 in |
| 28 Degree Latch | Yes |
| Concealed Screws | Yes |
| Function | Passage |
| Handle Design | Stuttgart |
| Handle Material | Metal |
| Handle Style | Lever |
| Lever Shape | Round, Straight |
| Material | Brass |
| Rosette Shape | Square |
| Theme | Modern |
| Trim Design | Square |
| ADA | Yes |
| Approved for Commercial Use | No |
| Fire Rated | No |
| Series | Stuttgart |
| Latch Type | Square Corner |
Questions
- Does this set lock?
- No. It has a passage function that does not lock.
- What door preparation does it require?
- It requires a 2-1/8 in cross bore, a 1 in edge bore and a 2-3/8 in backset.
- Are the mounting screws exposed?
- No. It is designed with concealed screws.
