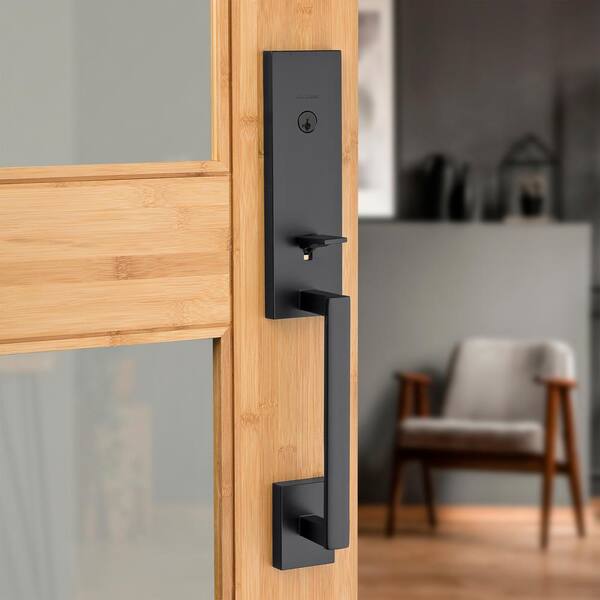

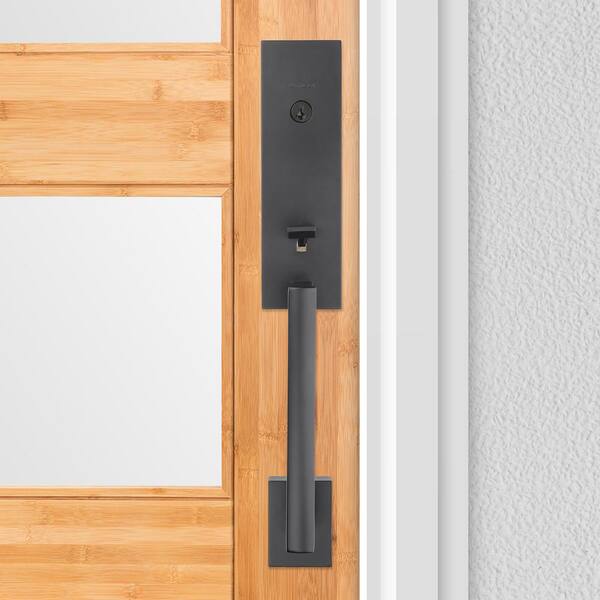

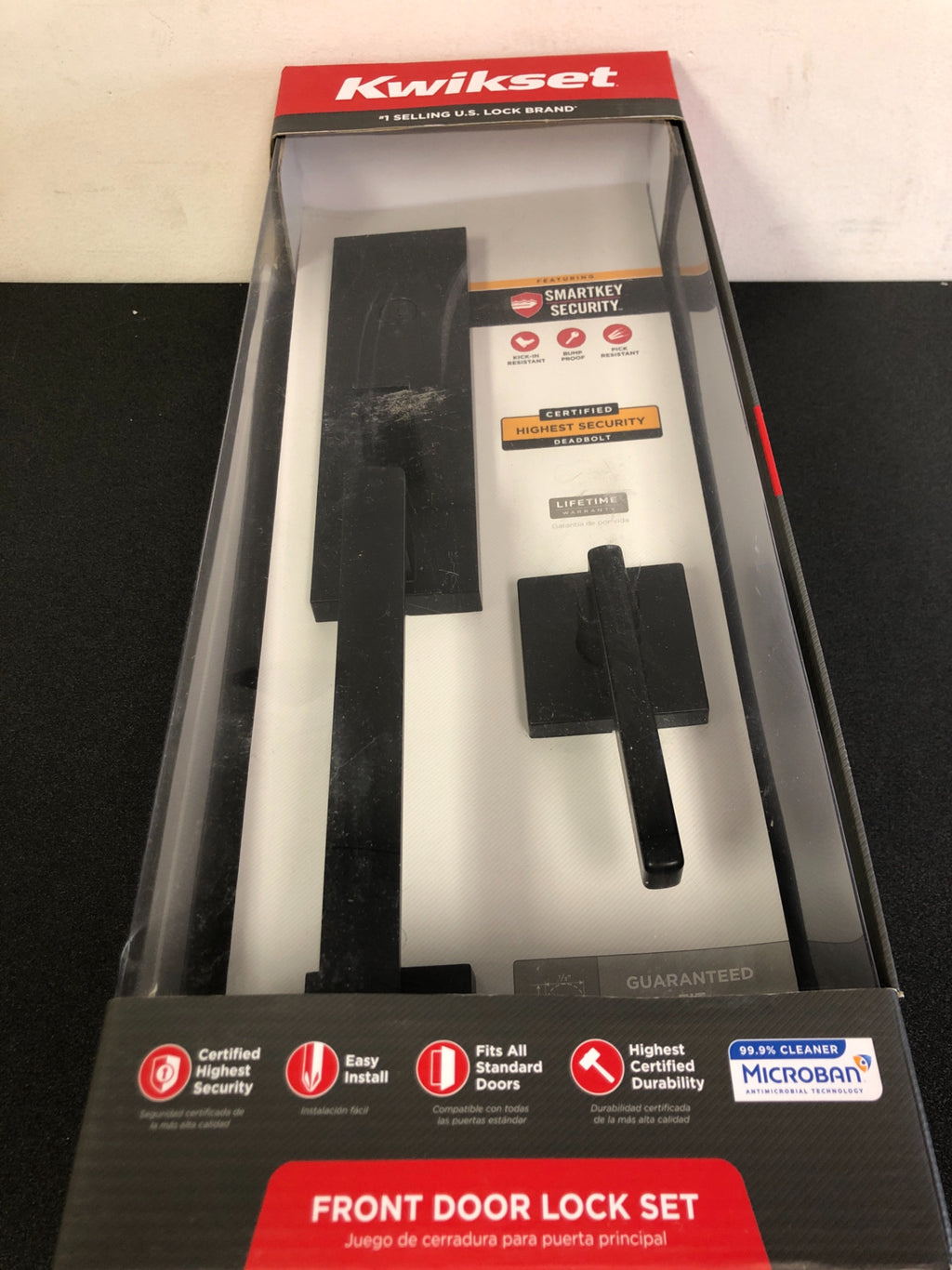

Kwikset Vancouver Matte Black Single Cylinder Low Profile Handleset with Halifax Lever Featuring SmartKey Security

Specifications

• Product Identifier: 883351715393
• Interior/Exterior: Exterior
• Material: Metal
• Security/ANSI Grade: AAA
• Deadbolt strike: Round corner
• Lock Type: Keyed
• Product Weight (lb.): 6.758
• Door Lock Style: Modern
• Hardware Finish Family: Black
• Single or Double Cylinder Deadbolt: Single
• Door Handing: Universal
• Total Number of Keys Included: 2
• Features: Antimicrobial Coating
• Door Locks & Knobs Product Type: Keyed Handlesets
• Electronic/Mechanical: Mechanical
• Lock Type: Keyed Entry
• Application Type: Entry
• Hardware Color Family: Black
• Finish: Matte Black
• Keying Type: Keyed Different
• Handleset Product Type: 2 Piece Front & Back
• Commercial/Residential: Residential
• Knob/lever strike: Round corner
• Deadbolt Type: Single Cylinder Deadbolt
• Lever style: Straight

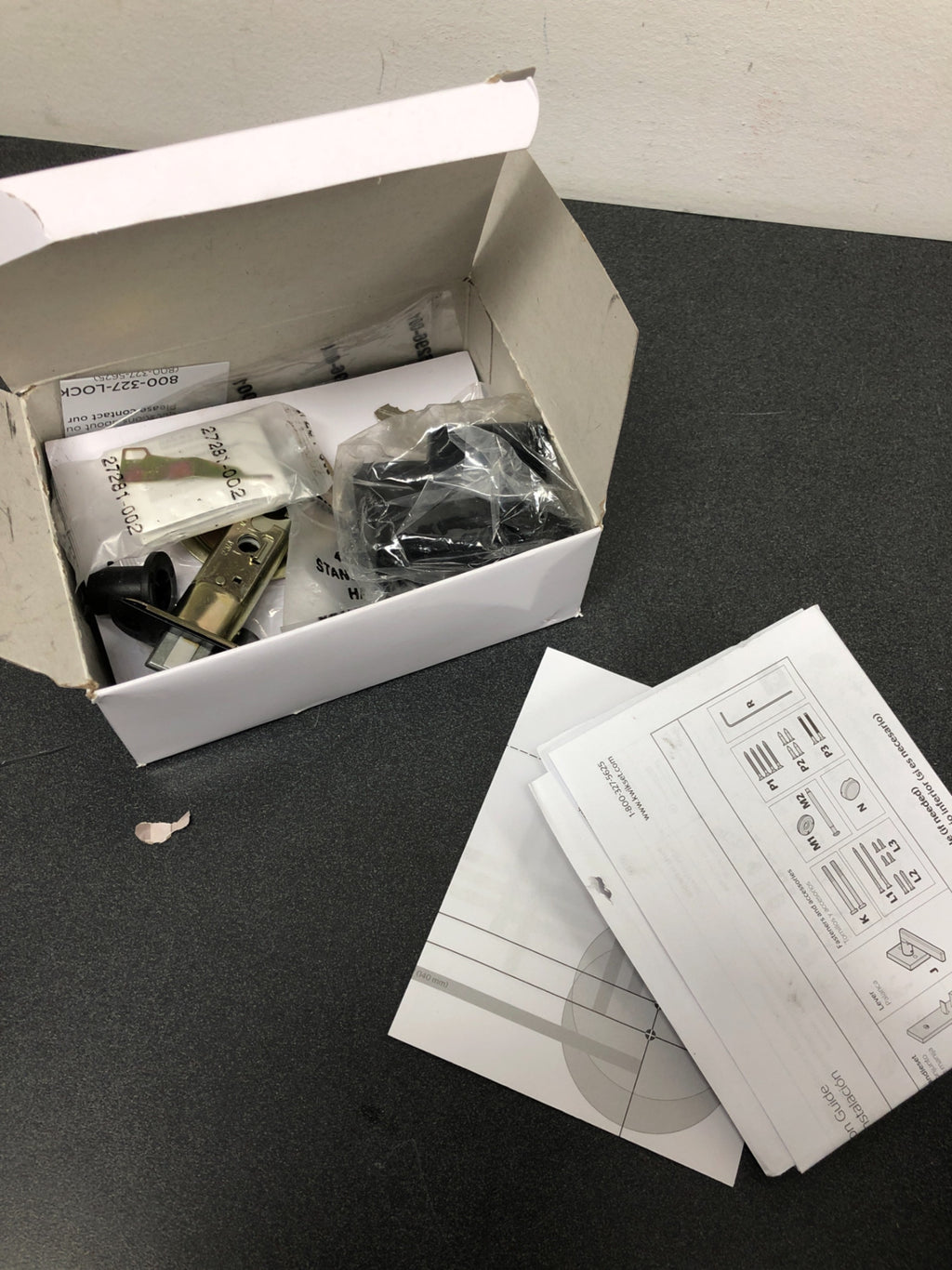

• Included: Hardware,Installation Instructions
• Keyway: KW1
• Lever grip length (in.): 4.47
• Minimum Door Thickness (in.): 1.75
• Deadbolt Trim Ring Diameter (in.): 2.625
• Knob/lever bore hole diameter (in.): 1
• Projection (in.): 2.66
• Knob/lever strike height (in.): 2.25
• Outside bottom handle plate length (in.): 2.66
• Maximum Door Thickness (in.): 1.75
• Outside handle and key plate length (in.): 3.75
• Assembled Width (in.): 3.75 in
• Inside top plate length (in.): 2.59
• Deadbolt Throw Length (in.): 1
• Inside top plate width (in.): 2.63
• Deadbolt Cross Bore Diameter (in.): 2.125
• Knob/lever throw length (in.): .5
• Assembled Depth (in.): 2.66 in
• Assembled Height (in.): 17.94 in
• Knob/lever strike width (in.): 1.75
• Knob/lever cross bore diameter (in.): 2.125
• Outside bottom handle plate width (in.): 3.75
• Deadbolt Strike Height (in.): 2.75
• Knob/lever housing width (in.): 2.625
• Knob/lever housing height (in.): 2.625
• Outside handle and key plate width (in.): 3.75
• Deadbolt Bore Hole Diameter (in.): 1
• Deadbolt Strike Width (in.): 1.125

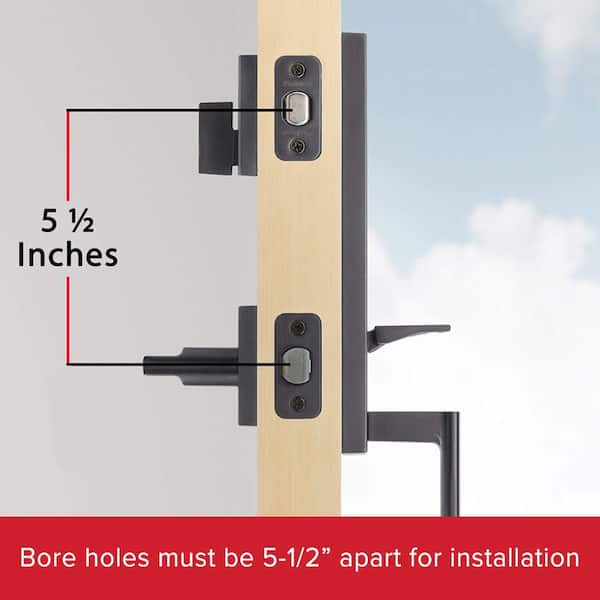

• Outside handle plate on-center measurement (in.): 5.5
• Backset size (in.): Adjustable
• Handle grip length (in.): 4.47
