Description

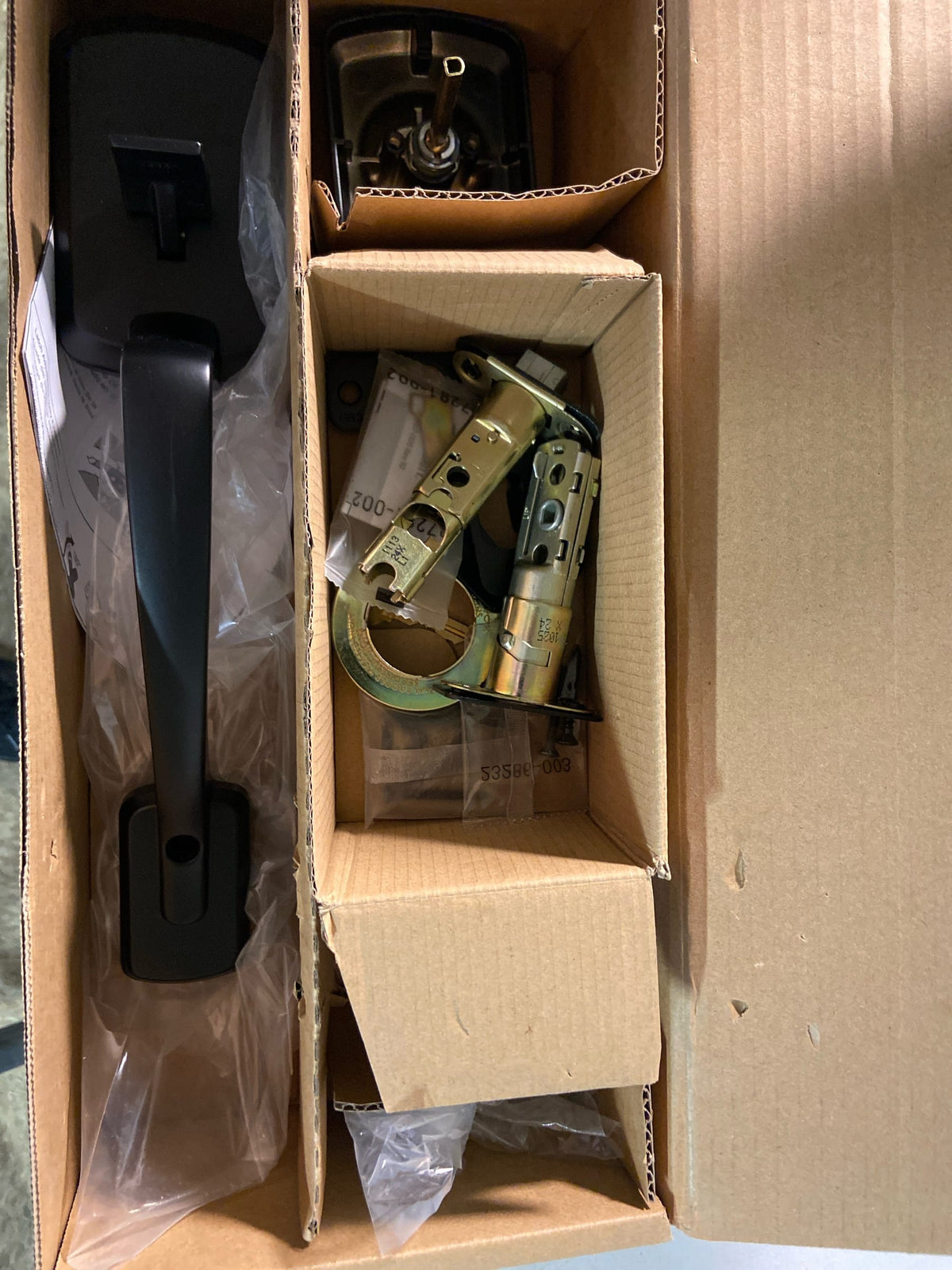

Kwikset Henley 687HYHLIP-514S.DS sectional single cylinder keyed entry exterior handleset in Matte Black with SmartKey. The manufacturer's package includes the exterior lock and cylinder; the interior pack is not included.
Installation details
- A compatible interior pack (not included)
- A door prepped with a 2-1/8 in cross bore and a 1 in edge bore
Highlights
- SmartKey 5-pin cylinder with KW1 keyway
- Sectional grip handleset with an adjustable throughbolt
- BHMA Grade 3 certified, UL certified, and fire rated
Good for
- Fire-rated doors
Specifications
| Brand | Kwikset |
|---|---|
| Model | 687HYHLIP-514S.DS |
| UPC | 883351900188 |
| Finish | Matte Black |
| Center to Center | 5.5 in |
| Cross Bore | 2-1/8 in |
| Edge Bore | 1 in |
| Handle Projection | 2.15625 in |
| Height | 17.625 in |
| Product Weight | 3.07 lb |
| Trim Height | 12.25 in |
| Trim Width | 2.78125 in |
| Adjustable Throughbolt | Yes |
| Concealed Screws | No |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry, Single Cylinder |
| Handle Material | Metal |
| Handle Style | Grip |
| Interconnected | No |
| Keyway | KW1 |
| Latch Faceplate | Round Corner |
| Lock Style | Single Point |
| Material | Zinc |
| Mount | Sectional |
| Theme | Contemporary |
| SmartKey | Yes |
| ADA | No |
| BHMA Grade | Grade 3 |
| Certifications | BHMA, UL |
| Collection | Henley |
| Country of Origin | Taiwan |
| Fire Rated | Yes |
Model package details
Manufacturer specifications list these items as not included with this model:
- Interior
Questions
- Is the interior hardware included?
- No. The interior pack is not included and must be purchased separately.
- What door bore sizes does it require?
- It fits a door with a 2-1/8 in cross bore and a 1 in edge bore. It also features an adjustable throughbolt.
- What keyway and lock cylinder does it use?
- It features a SmartKey 5-pin single cylinder with a KW1 keyway.
