Description

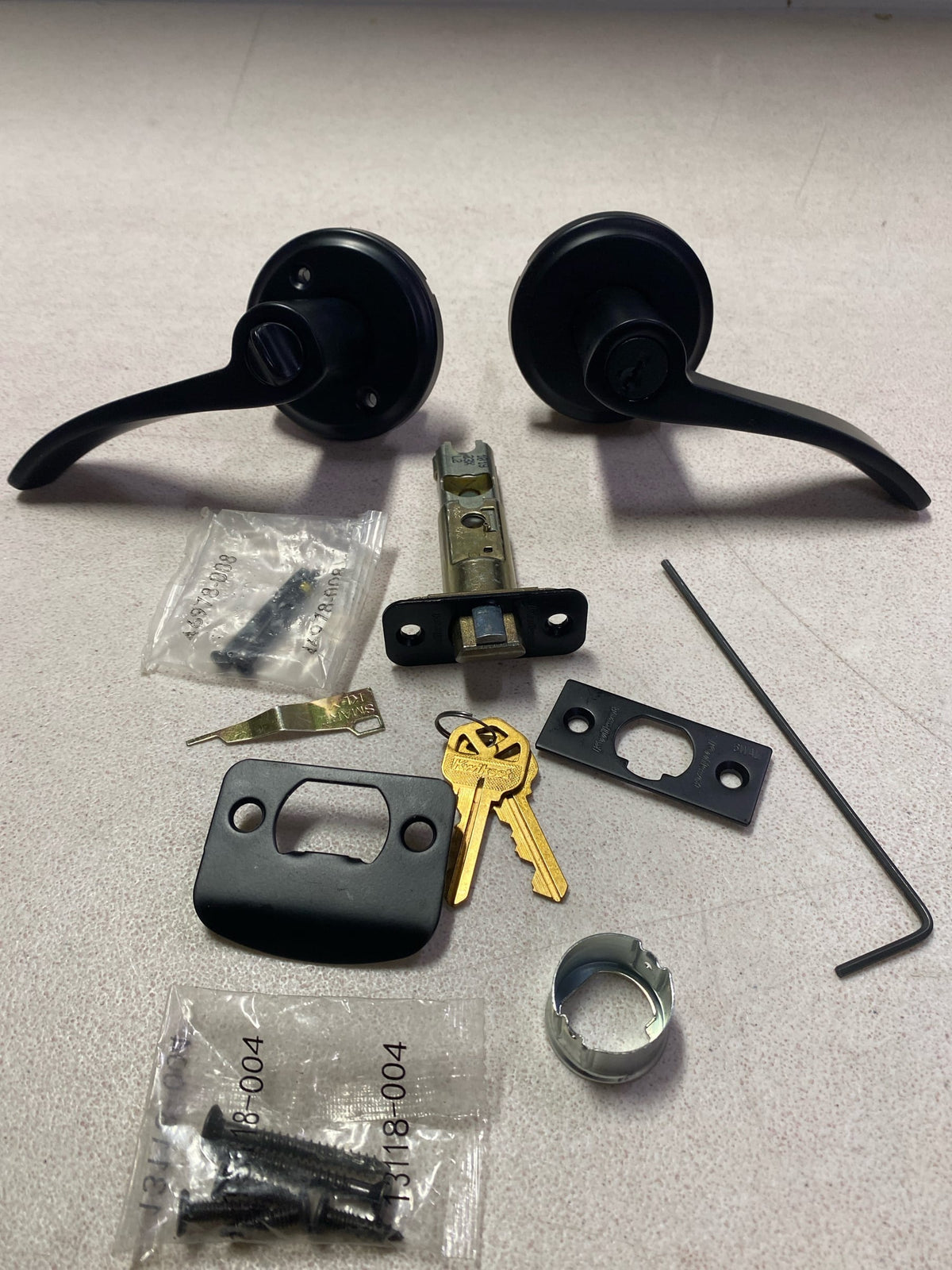

Kwikset Sedona 740SEL-514S single cylinder keyed entry door lever set in Matte Black with SmartKey. It fits doors with a 2-1/8 in cross bore, a 1 in edge bore, and an adjustable backset of 2-3/8 in or 2-3/4 in.
Installation details
- A door with a 2-1/8 in cross bore
- A 1 in edge bore
- A 2-3/8 in or 2-3/4 in backset
Highlights
- Single cylinder keyed entry with a SmartKey 5 Pin cylinder and KW1 keyway
- Wave lever handle made of zinc on a round rosette
- Adjustable backset of 2-3/8 in or 2-3/4 in
- BHMA Grade 3 and ANSI A156.3 certified
Specifications
| Brand | Kwikset |
|---|---|
| Model | 740SEL-514S |
| UPC | 883351921299 |
| Finish | Matte Black |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8 in |
| Edge Bore | 1 in |
| Handle Length | 4.25 in |
| Handle Projection | 2.53125 in |
| Product Weight | 1.783 lb |
| Trim Height | 2.65625 in |
| Trim Width | 2.65625 in |
| Concealed Screws | No |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry, Single Cylinder |
| Handle Design | Sedona |
| Handle Material | Metal |
| Handle Style | Lever |
| Keyway | KW1 |
| Lever Shape | Wave |
| Material | Zinc |
| Rosette Shape | Round |
| Theme | Contemporary |
| SmartKey | Yes |
| ADA | No |
| ANSI Certification | A156.3 |
| Approved for Commercial Use | No |
| BHMA Grade | Grade 3 |
| Certifications | ANSI, BHMA |
| Collection | Sedona |
| Country of Origin | Taiwan |
| Fire Rated | No |
Questions
- Will it fit my door?
- It fits doors with a 2-1/8 in cross bore, a 1 in edge bore, and an adjustable backset of 2-3/8 in or 2-3/4 in.
- Is the cylinder included?
- The manufacturer's package includes the SmartKey 5 Pin cylinder with a KW1 keyway.
- What certifications does it have?
- It is certified to ANSI A156.3 and rated BHMA Grade 3.
